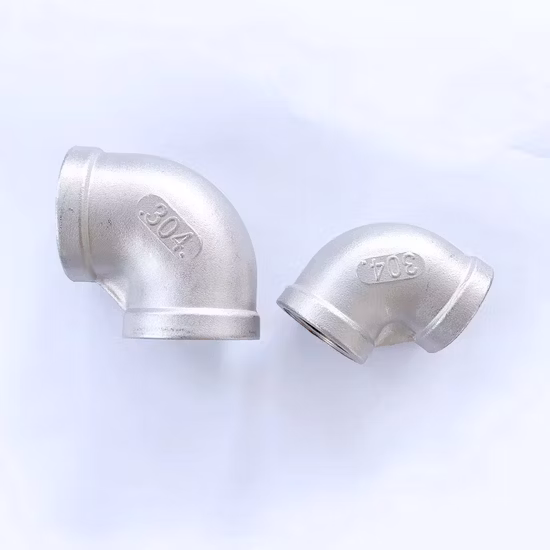

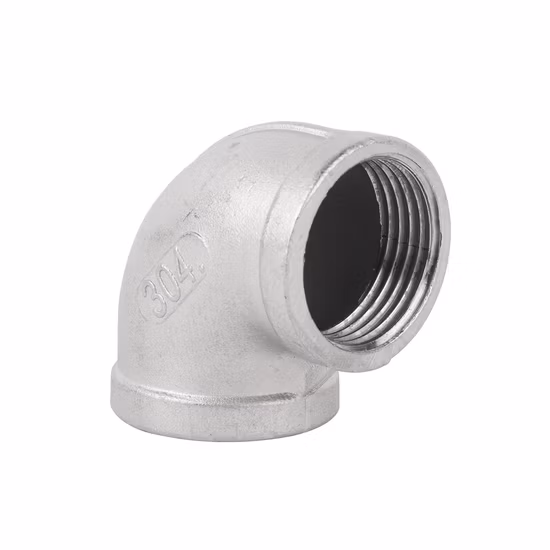

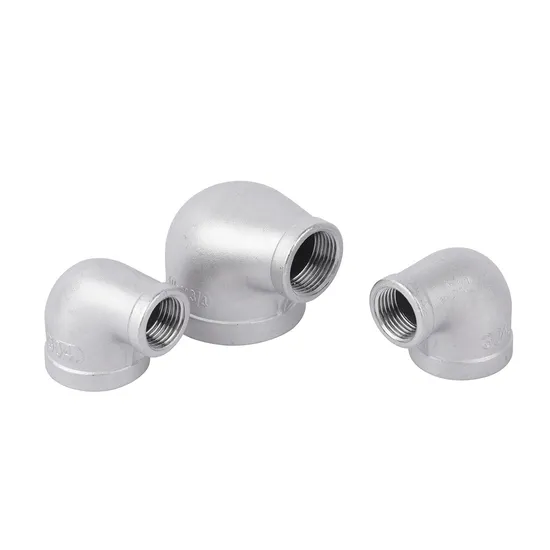

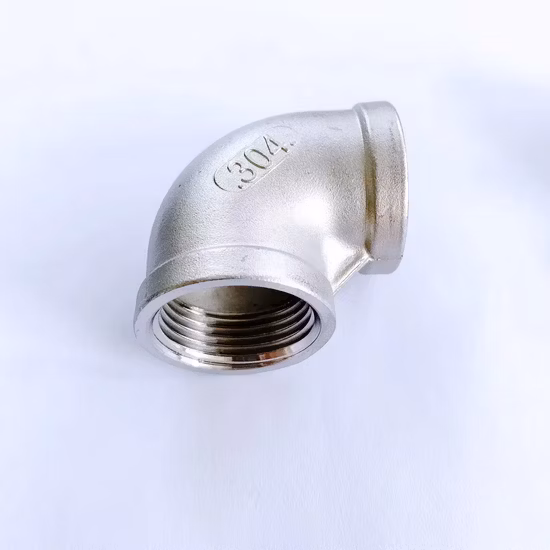

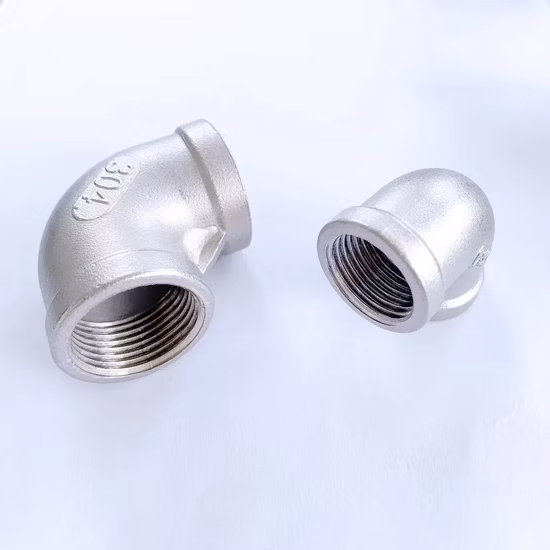

Stainless Steel 90 Degree Elbows 150lb Bsp BSPT NPT Thread

Basic Info

Model NO.	LT-01A
Angle	90 Degree
Wall Thickness	ISO 4144
Material	Stainless Steel
Technics	Casting
Certification	Ce & Kc & ISO 9001 & ISO14001
Color	Silver
Factory	Casting Foundry
Delivery Time	30-45 Days
Thread Standard	BSPT/Bsp/NPT/G/PT
Free Sample	Ok
Transport Package	Cartons & Pallet / Cartons & Plywood Cases
Specification	1/8"-4"
Trademark	EADEK
Origin	China
HS Code	7307220000
Production Capacity	Casting: 25ton/Week; Finished: 21 Ton/Week

Packaging & Delivery

Package size per unit product 40.00cm * 26.00cm * 15.00cm Gross weight per unit product 1.000kg

Product Description

• Item No.: LT - 01A
• Material:ASTM A351 CF8(304), ASTM A351 CF8M(316)
• Size:⅛"~4''
• Thread Type:BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), etc..
• Pressure rates: 150#
• For Use with Air, Natural Gas, Oil, Steam, Water.
• Fabrication: Silica Sol Precision Casting Technology.
• Certificate: ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc..
• Pipe fittings meet applicable chemical & mechanical properties.
• Material Test Report is available upon request when placing order.

Main Size mm

Size	DN	ΦD	a
1/8"	DN6	14.5	17
1/4"	DN8	18	19
3/8"	DN10	21.5	23
1/2"	DN15	26.5	27
3/4"	DN20	32	32
1"	DN25	39.5	37
1-1/4"	DN32	48.5	43
1-1/2"	DN40	55	48
2"	DN50	84	69
2-1/2"	DN65	84	69
3"	DN80	98	78
4"	DN100	124.5	94
